VF-24LSLong Stroke

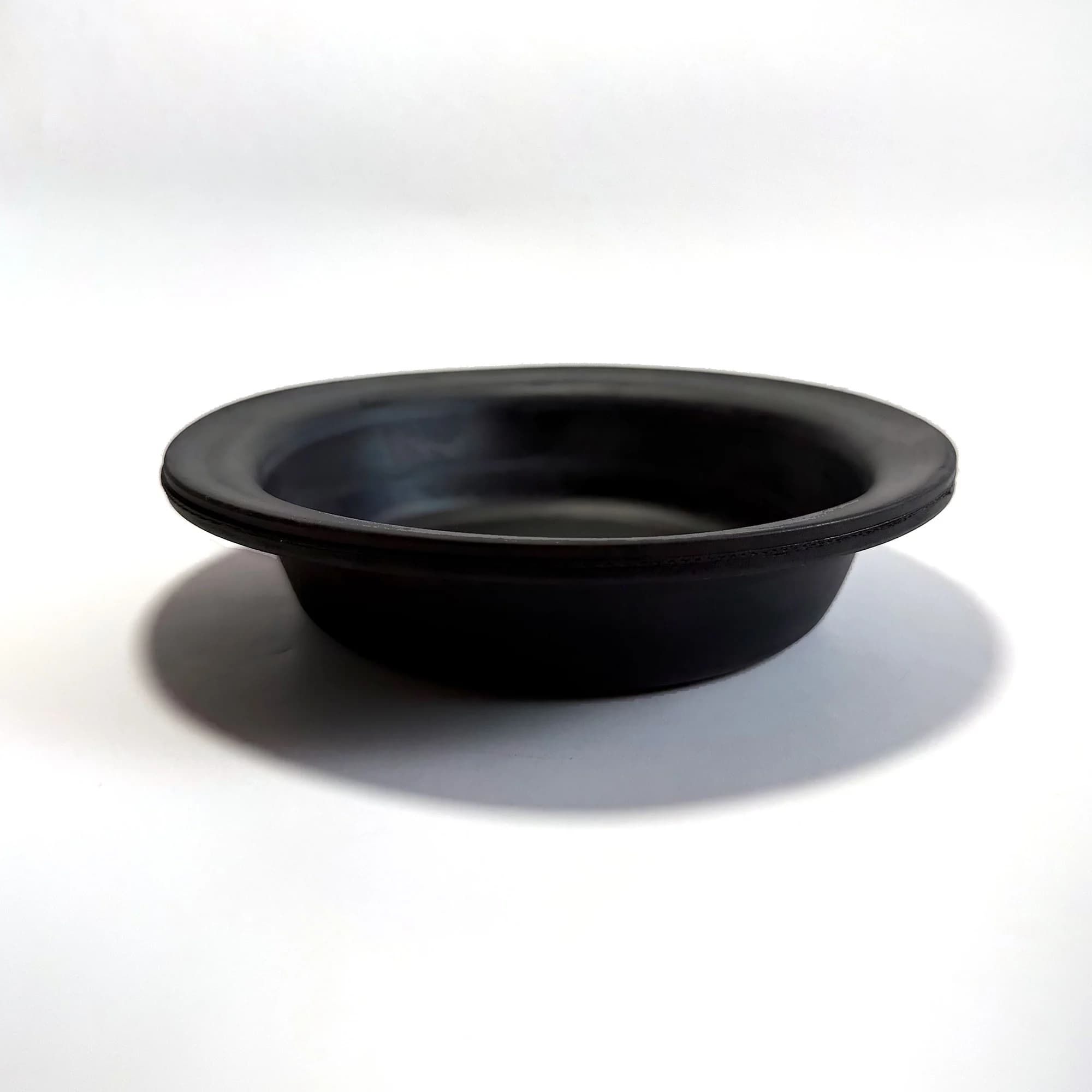

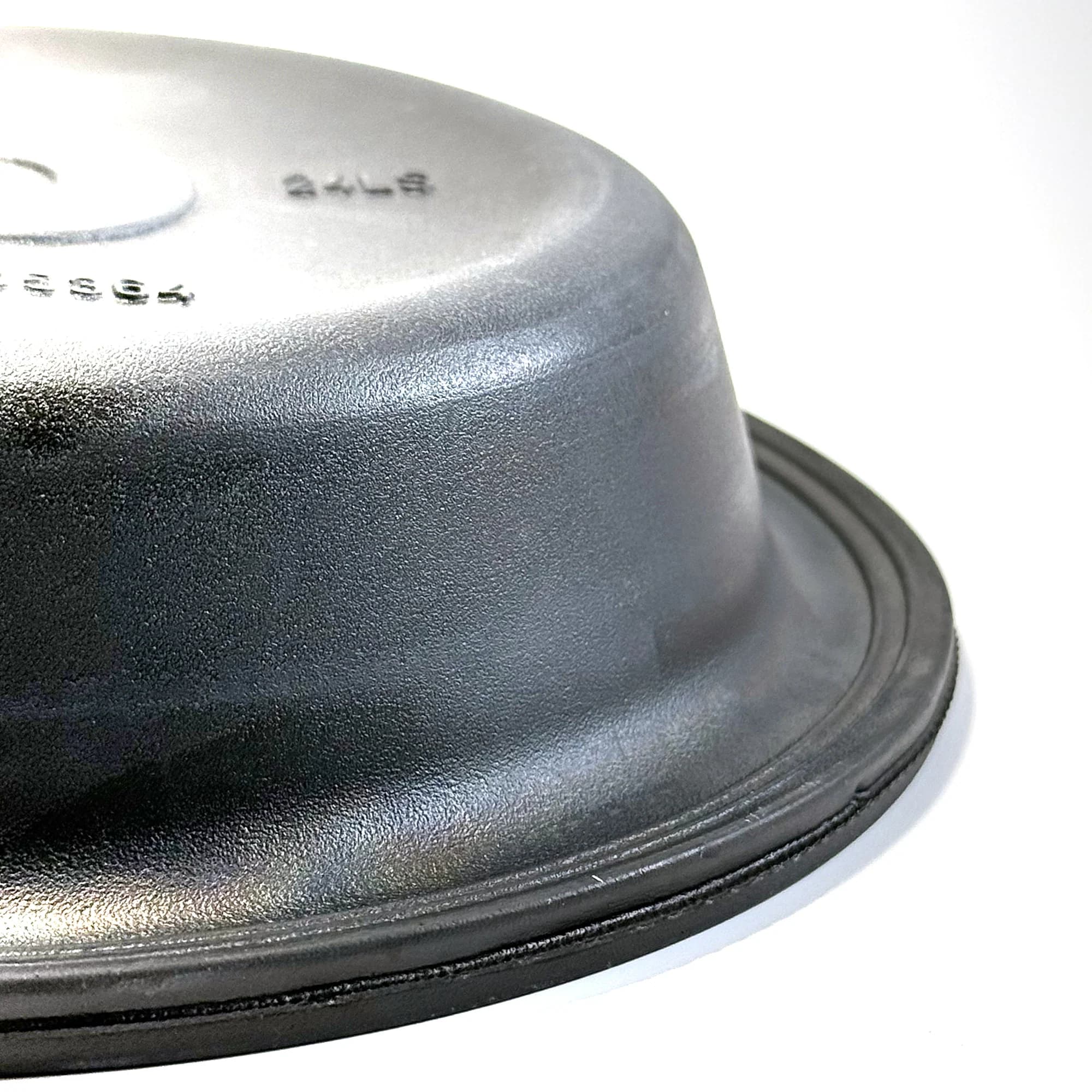

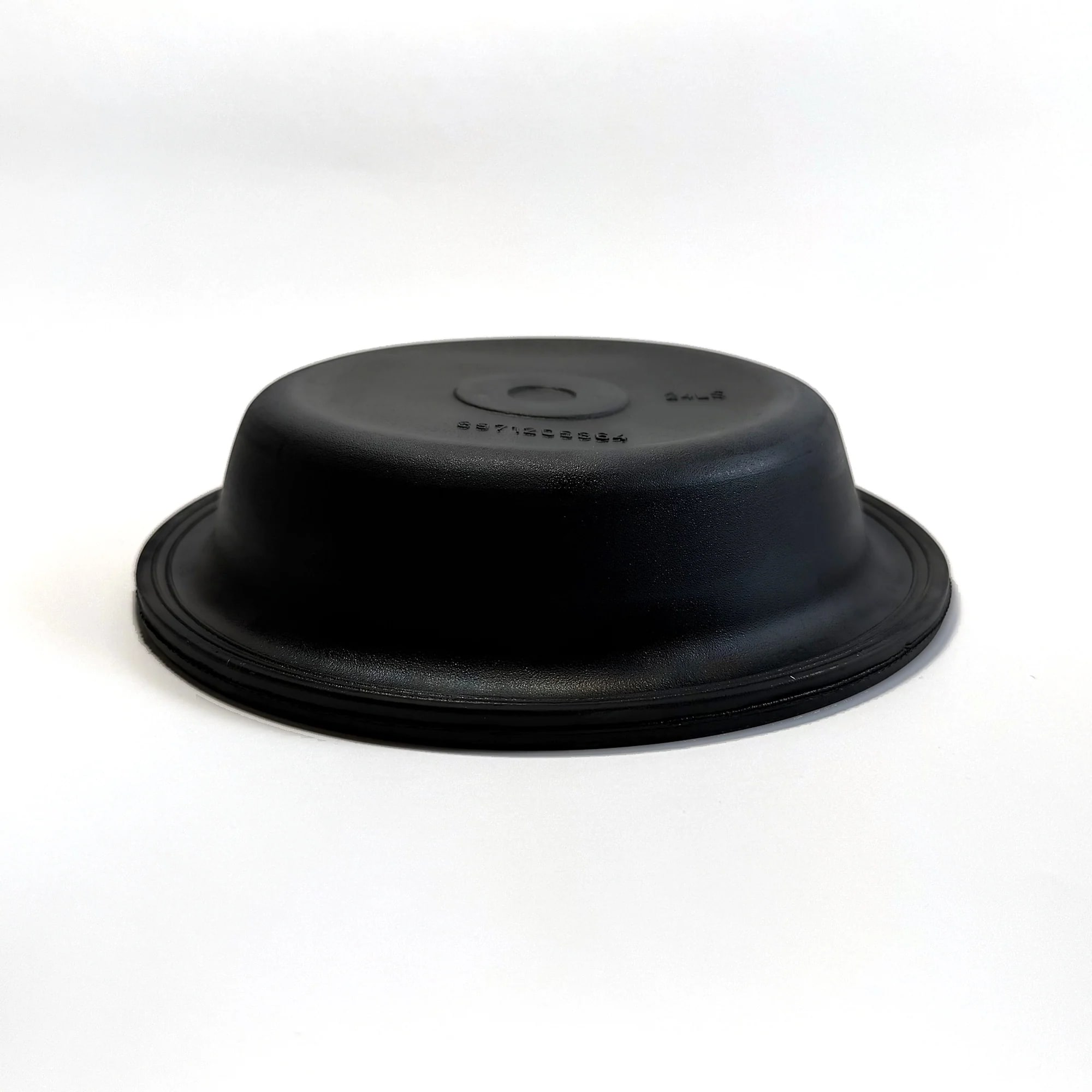

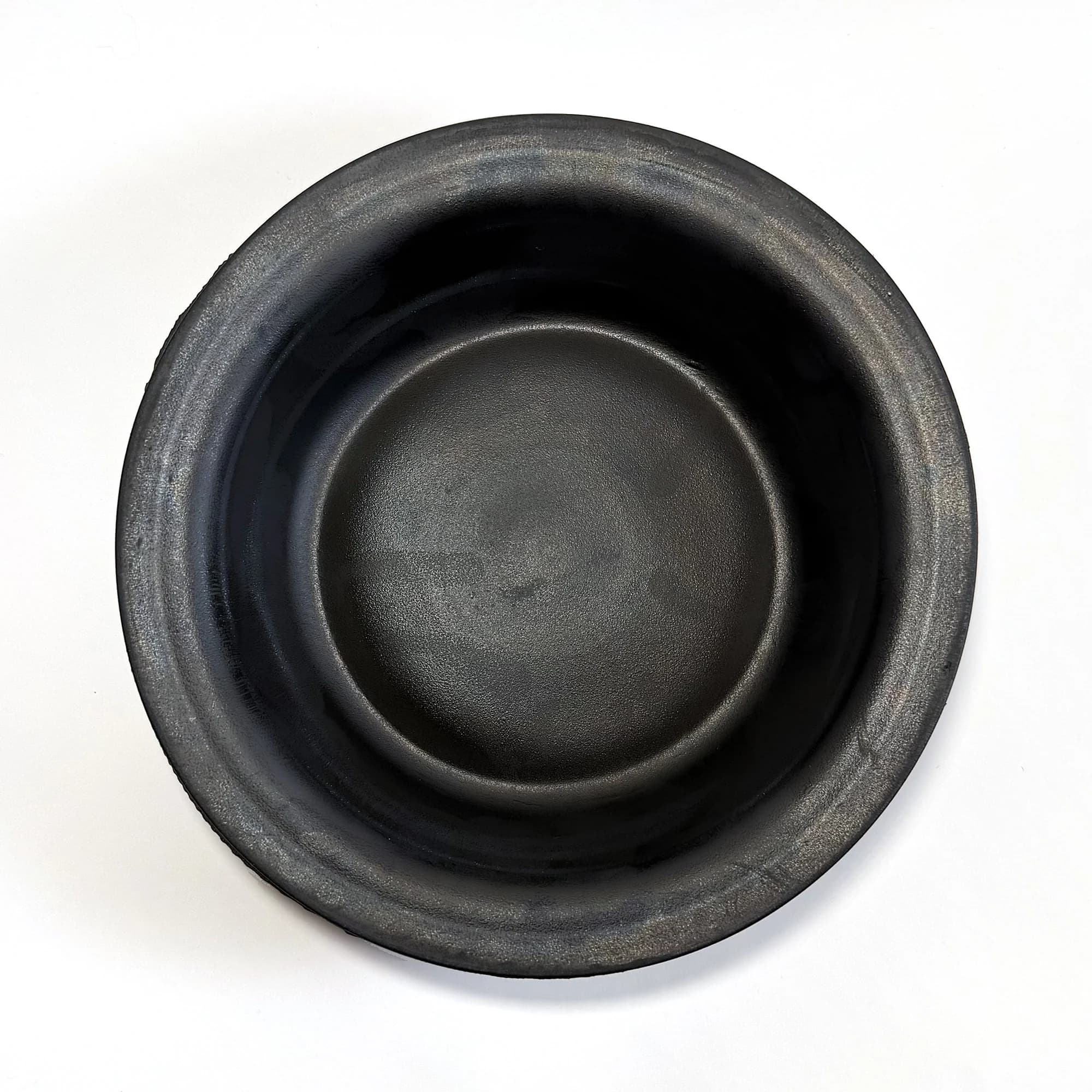

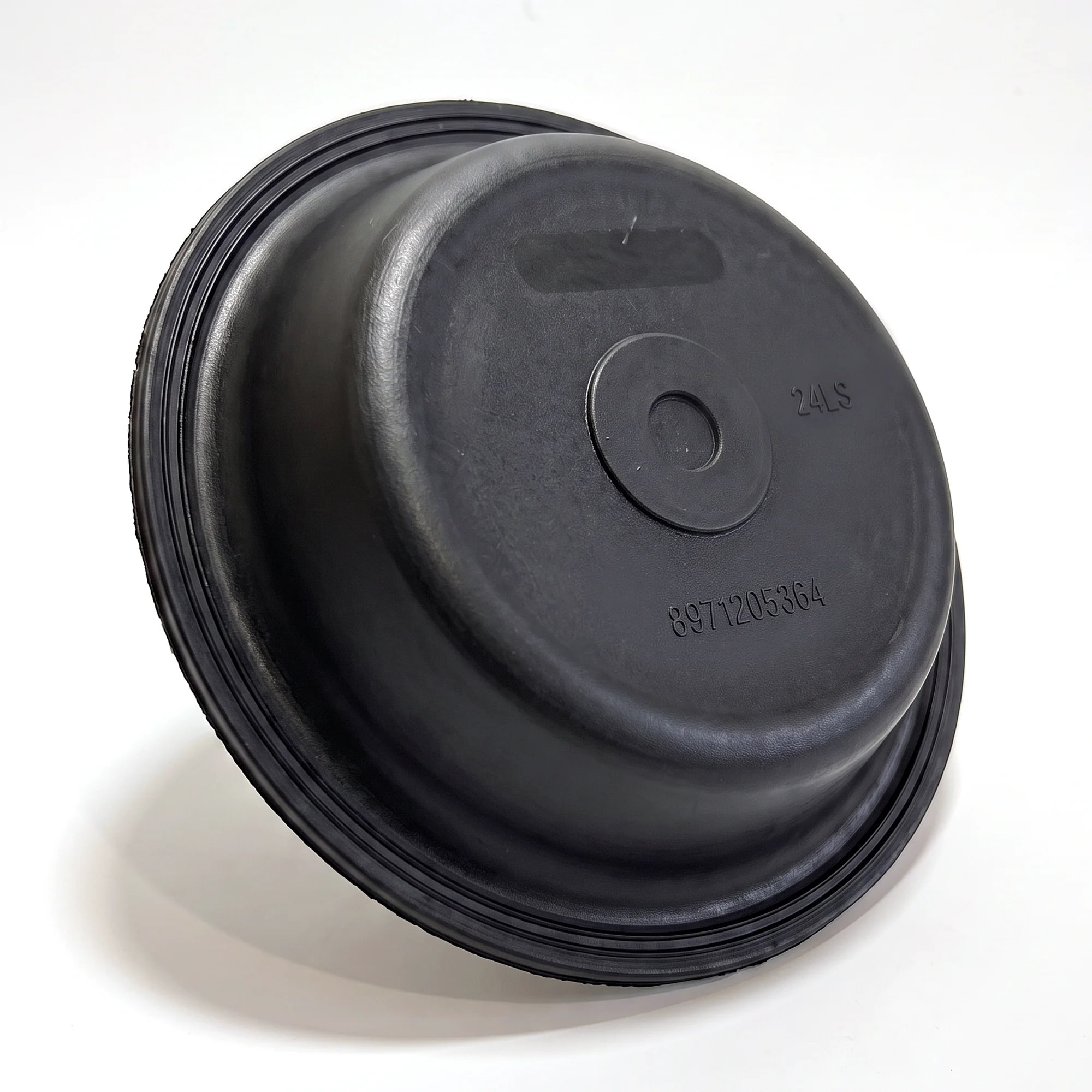

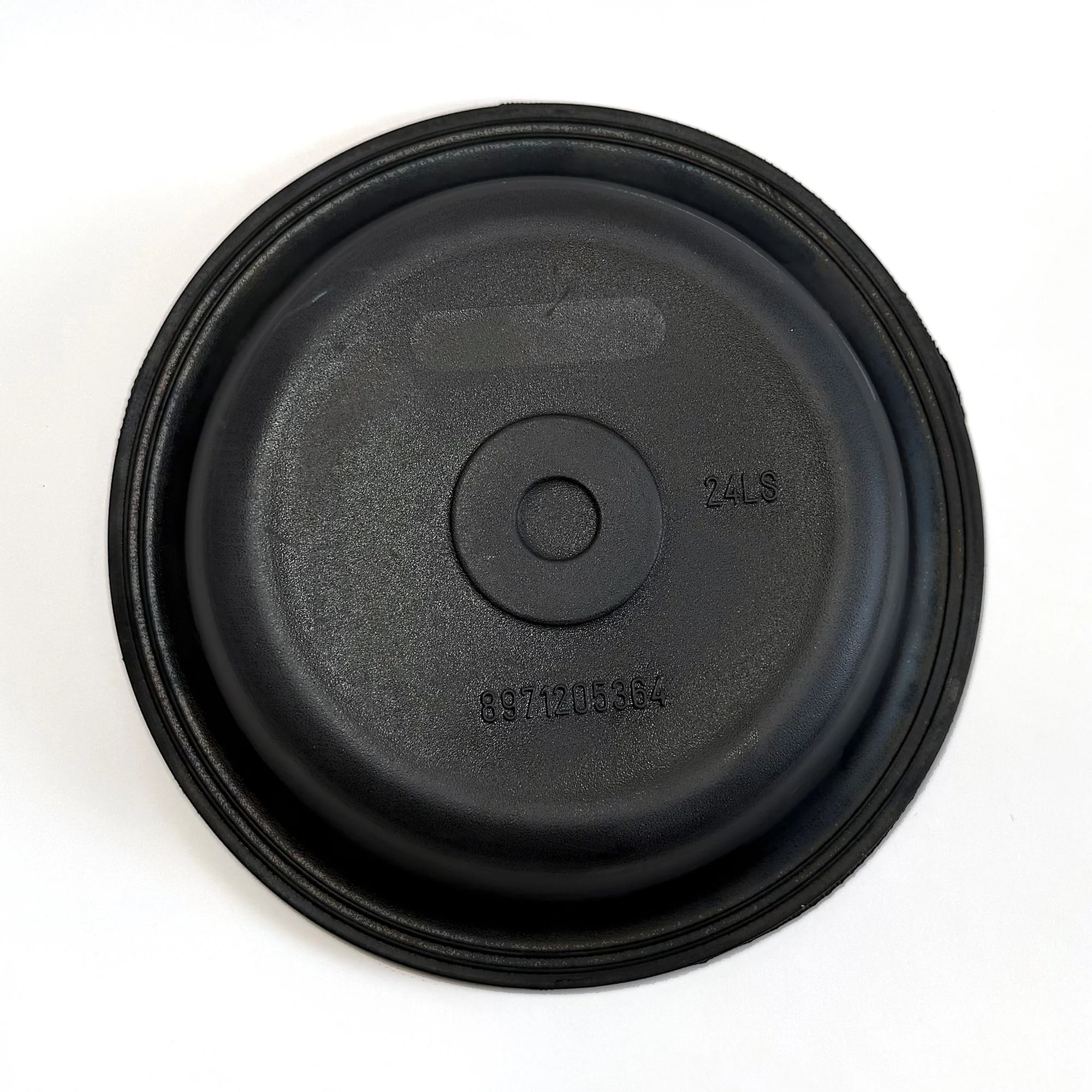

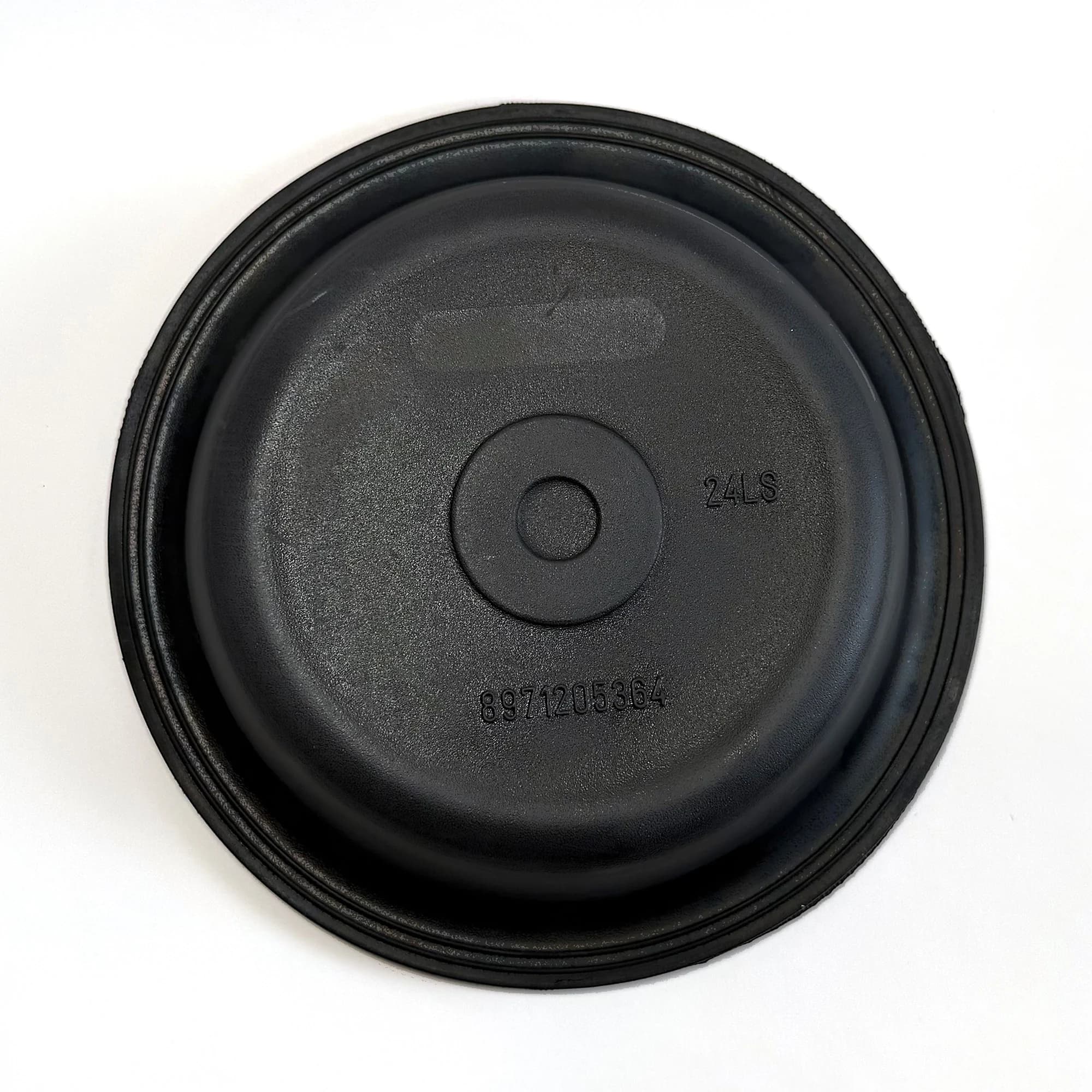

Type 24 Brake Chamber Diaphragm, Long Stroke

Viaforta VF-24LS is a Type 24 long stroke air brake chamber diaphragm, fabric-reinforced and manufactured in Türkiye. It cross-references 63 original equipment part numbers from WABCO, Mercedes-Benz, MAN and 30 more. Free samples available; quotation within 24 hours.

Specifications

Specifications
Size24LS
Stroke typeLong Stroke
MaterialFabric-reinforced rubber compound, made in Türkiye
FitmentDirect fit for Type 24 service brake chambers
Viaforta part no.VF-24LS

Dimensional data is not published. Manufacturing tolerances vary between production batches, and a fixed published figure that a shipment later disagrees with is worse than no figure at all. Fitment is confirmed by Type and stroke, and by the OEM number stamped on your chamber.

Order quantities and lead times are confirmed per order — request a quote.

Request a free sample

Up to 10 pieces, free of charge — you pay the shipping. Fit them and judge the part yourself.

Get a quote for VF-24LS

Send the part number and the quantity you need. You will get a price in USD, Incoterms and a lead time within 24 hours.

Get a Quote in 24 HoursRequest a Free SampleWhatsAppEmail us

Free samples up to 10 pieces are available on request; you cover the shipping only.

Prices are quoted in USD, EXW or FOB Istanbul. Freight is arranged separately. Payment by bank transfer or letter of credit against a proforma invoice.

OEM cross reference

VF-24LS replaces the following original equipment part numbers. Each number links to its own reference page.

63 references across 33 manufacturers

OEM cross reference
BrandOEM number
WABCO897 120 536 4
Mercedes-Benz000 423 34 86
MAN81 51113 0017
Volvo6212195
Renault5021170281
Scania1320138
DAF691763
Air Fren02.1627W
Air Fren02.1802L
Auger52587
BPW02.220.30.40.0
Cojali6001117
Corteco1-1680
Corteco00471875
DAF1505273
DAF695751
DPH81624
DT Spare Parts24 431 928
DT Spare Parts4.80160
DT Spare Parts07750
EvoBus82830006400
EvoBus82837244510
FAUN99708460872
febi bilstein07103
Goldhofer153068
Goldhofer161896
Haldex025040909
Hino41421EV020
IVECO9932516
Kässbohrer8.283.000.640
Langendorf1132212
MAN81511130014
MAN99100360792
Mercedes-Benz000 431 1928
Mercedes-BenzA0004313486
MEYLE034 042 0043
Nooteboom305122
PE Automotive126.401-00A
PE Automotive016.250-00
PE Automotive076.415-10A
Renault5000809567
Renault50 00 809 652
Renault5021170280
Renault5021171714
Sampa095.112
Scania1104236
Scania1333661
Scania1935373
Schwarzmüller4517
Schwarzmüller4518
Setra8.283.000.640
ST-Templin02.130.7117.100
UD Trucks44327NY01A
Van Hool637412560
VDL20229536
VDL229536
Volvo1698126
Volvo22324304
Volvo341425
Volvo6211305
Volvo6212597
Volvo8127080
WABCO8971205354

Vehicle applications

This diaphragm is catalogued for the vehicles below. Source: Diesel Technic, PE Automotive.

229 vehicles

Vehicle applications
MakeModelYears
DAF451996-2000
DAF551996-2000
DAF651993-1998
DAF65 CF1998-2001
DAF751992-1998
DAF75 CF1998-2001
DAF851992-1998
DAF85 CF1998-2001
DAF951987-1997
DAF95 XF1997-2003
DAFCF 652001-2006
DAFCF 65II2001-2006
DAFCF 65III2001-2006
DAFCF 65IV2006-2013
DAFCF 752001-2006
DAFCF 75II2001-2006
DAFCF 75IV2006-2013
DAFCF 852001-2006
DAFCF 85II2001-2006
DAFCF 85IV2006-2013
DAFCF E62013-2017
DAFCF F72017-
DAFDB 2501995-2002
DAFDBR 2501996-2003
DAFF 10001955-1970
DAFF 11001955-1970
DAFF 12001955-1970
DAFF 13001955-1970
DAFF 14001955-1970
DAFF 15001955-1970
DAFF 16001955-1970
DAFF 17001955-1970
DAFF 18001955-1970
DAFF 19001955-1970
DAFF 20001970-1980
DAFF 21001970-1980
DAFF 22001970-1980
DAFF 23001970-1980
DAFF 25001970-1980
DAFF 26001970-1980
DAFF 27001970-1980
DAFF 28001973-1995
DAFF 29001973-1995
DAFF 31001973-1995
DAFF 32001973-1995
DAFF 33001973-1995
DAFF 36001973-1995
DAFF 5001975-
DAFF 6001975-
DAFF 8001975-
DAFF 9001975-
DAFLF 452001-2006
DAFLF 45II2001-2006
DAFLF 45IV2006-2013
DAFLF 552001-2006
DAFLF 55IV2006-2013
DAFLF E62013-
DAFMB 2002000-2006
DAFMB 2302002-2008
DAFMB 23002004-2010
DAFN 28001980
DAFN 33001982-1990
DAFSB 1201999-2006
DAFSB 1802000-2005
DAFSB 2001995-2002
DAFSB 20002002-2007
DAFSB 2012002-2005
DAFSB 2102003-2006
DAFSB 2202003-2007
DAFSB 2252004-2008
DAFSB 2302005-2010
DAFSB 23002006-2012
DAFSB 23052007-2013
DAFSB 2352008-2014
DAFSB 2502009-2015
DAFSB 2602010-2016
DAFSB 3001998-2003
DAFSB 30002003-2008
DAFSB 4002004-2009
DAFSB 40002005-2010
DAFSBG 2202006-2011
DAFSBR 2302007-2012
DAFSBR 30002008-2013
DAFSBR 30152009-2014
DAFXD G12022-
DAFXF 1052005-
DAFXF 952002-2006
DAFXF 95II2002-2006
DAFXF E62012-
DAFXF F72017-
DAFXF G22021-
DAFXG G32021-
IVECOEUROCARGO I-III1991-
MackCS—
MackMS—
MAN322/352/402/422/4621973-1995
MANE 20001994-1998
MANEL1990-2005
MANF 20001994-2000
MANF 901986-1994
MANHOC—
MANL 20001994-2005
MANLion's2014-
MANM 20001994-2005
MANNG1990-2005
MANNL1989-1998
MANRH1990-2005
MANTGA2000-
MANTGL2004-
MANTGM2004-
MANTGS2006-
MANTGX2006-
MANÜL1990-2024
Mercedes-BenzActros 11996-2003
Mercedes-BenzActros 22003-2008
Mercedes-BenzActros 32008-2011
Mercedes-BenzActros 42011-
Mercedes-BenzAntos2012-2020
Mercedes-BenzArocs2013-
Mercedes-BenzAtego 11998-2004
Mercedes-BenzAtego 22004-2010
Mercedes-BenzAtego 32013-
Mercedes-BenzAxor—
Mercedes-BenzEconic 1—
Mercedes-BenzEconic 2—
NeoplanCentroliner—
NeoplanCityliner—
NeoplanJetliner—
NeoplanSkyliner—
Renault TrucksAE—
Renault TrucksAE Magnum—
Renault TrucksC—
Renault TrucksCBH—
Renault TrucksCE—
Renault TrucksCLM—
Renault TrucksCLR—
Renault TrucksD—
Renault TrucksG—
Renault TrucksK—
Renault TrucksKerax—
Renault TrucksKerax DXi 11—
Renault TrucksKerax DXi 13—
Renault TrucksM—
Renault TrucksMagnum DXi 12—
Renault TrucksMagnum DXi 13—
Renault TrucksMagnum E-Tech—
Renault TrucksMajor—
Renault TrucksManager—
Renault TrucksMaxity—
Renault TrucksMaxter—
Renault TrucksME—
Renault TrucksMidlum—
Renault TrucksMidlum II—
Renault TrucksPremium—
Renault TrucksPremium II DXi 7—
Renault TrucksPremium II PR—
Renault TrucksPremium II TR—
Renault TrucksPremium PR—
Renault TrucksPremium TR—
Renault TrucksPuncher—
Renault TrucksR—
Renault TrucksS—
Renault TrucksSE—
Renault TrucksT—
ScaniaCL 941994-2010
ScaniaCN 941994-2010
ScaniaF2004-
ScaniaF 1141994-2010
ScaniaF 941994-2010
ScaniaG2003-
ScaniaK2004-
ScaniaK 1141994-2010
ScaniaK 1241994-2010
ScaniaK 941994-2010
ScaniaL2016-
ScaniaL 941994-2010
ScaniaN2004-
ScaniaN 941994-2010
ScaniaP2003-
ScaniaR2003-
ScaniaS2016-
ScaniaT2003-2018
SisuSisu / Renault—
Volvo70001999-2003
Volvo75002005-2011
Volvo77002003-2012
Volvo85002001-2011
Volvo87002002-2011
Volvo93002008-2015
Volvo97002001-2024
VolvoB11R2011-
VolvoB13R2009-
VolvoB581979-1998
VolvoB5LH2008-
VolvoB5LH (3)2013-
VolvoB5LHC (3)2015-
VolvoB5RH2013-
VolvoB5TL (3)2013-
VolvoB61991-1999
VolvoB6BLE1999-2001
VolvoB6R1991-2006
VolvoB71993-2005
VolvoB7F1993-2005
VolvoB7FA1993-2005
VolvoB7FB1993-2005
VolvoB7L1998-2006
VolvoB7R1997-2019
VolvoB8L (3)2018-
VolvoB8R (3)2013-
VolvoB9L2005-2014
VolvoB9R2006-2013
VolvoB9S1999-2011
VolvoB9TL2002-2018
VolvoF101976-1995
VolvoF121976-1995
VolvoF161987-1995
VolvoFE2006-2013
VolvoFE (3)2013-
VolvoFH121993-2001
VolvoFH161998-2003
VolvoFL2006-2013
VolvoFL (3)2013-
VolvoFL101985-1998
VolvoFL121995-1998
VolvoFL62000-2006
VolvoFM101998-2001
VolvoFM121998-2001
VolvoN101973-1989
VolvoN121973-1989

WABCO manufacture air brake systems rather than vehicles — their numbers are catalogue references used across multiple vehicle makes.

These lists come from published aftermarket catalogues, not from the vehicle manufacturers. Confirm the Type marking and the OEM number stamped on your brake chamber before ordering — send us the number and we will confirm the match within 24 hours. Why this check matters

How does this part work?

The diaphragm sits between the two halves of the service brake chamber. When the driver applies the brake, compressed air fills the chamber on one side of the diaphragm; the diaphragm deflects and drives the push rod out, which rotates the slack adjuster and applies the foundation brake. Releasing the pedal vents the air and the return spring pushes the diaphragm back. A Type 24 diaphragm presents 24 square inches of effective area to that air pressure, which is what determines the output force of the chamber.

How air brake chamber diaphragms work →

Why Viaforta?

  • Our own rubber formulation

    The rubber mix is prepared at the production facility rather than bought in ready-made. Most competitors buy pre-mixed compound; controlling the mix is a real and checkable technical advantage.

  • Free samples, up to 10 pieces

    Test before you commit. You pay only the shipping.

  • Every size from one source

    Type 9 through Type 36, normal and long stroke, from a single supplier and a single set of documents.

  • Made in Türkiye

    Manufactured at our production partner's facility in Istanbul, Türkiye.

Frequently asked questions

Which brake chambers does VF-24LS fit?
It fits Type 24 long stroke service brake chambers. Confirm by the Type marking on the chamber body, or by matching the OEM number stamped on the chamber against the cross-reference table above.
Can I use a normal stroke diaphragm in a long stroke chamber?
No. Long stroke chambers need the deeper diaphragm profile to reach full travel. Fitting a normal stroke diaphragm reduces available stroke and can cause the brake to run out of adjustment. The two are not interchangeable in either direction.
What material is used?
Fabric-reinforced rubber, blended to a formulation of our own rather than purchased pre-mixed. The reinforcing fabric is what carries the pressure load and stops the rubber stretching under repeated cycling.
Do you publish dimensions?
No. Manufacturing tolerances vary between production batches, and publishing a fixed figure that a later shipment disagrees with is worse than publishing none. Fitment is identified by Type and stroke, and confirmed against the OEM number.
What is the minimum order quantity?
Order quantities are agreed per order and small trial quantities are accepted. Request a quote with your part number and quantity and you will get a firm answer within 24 hours.
Can I get a sample before ordering?
Yes — up to 10 pieces free of charge, with shipping at your cost. This is the fastest way to evaluate the part.
