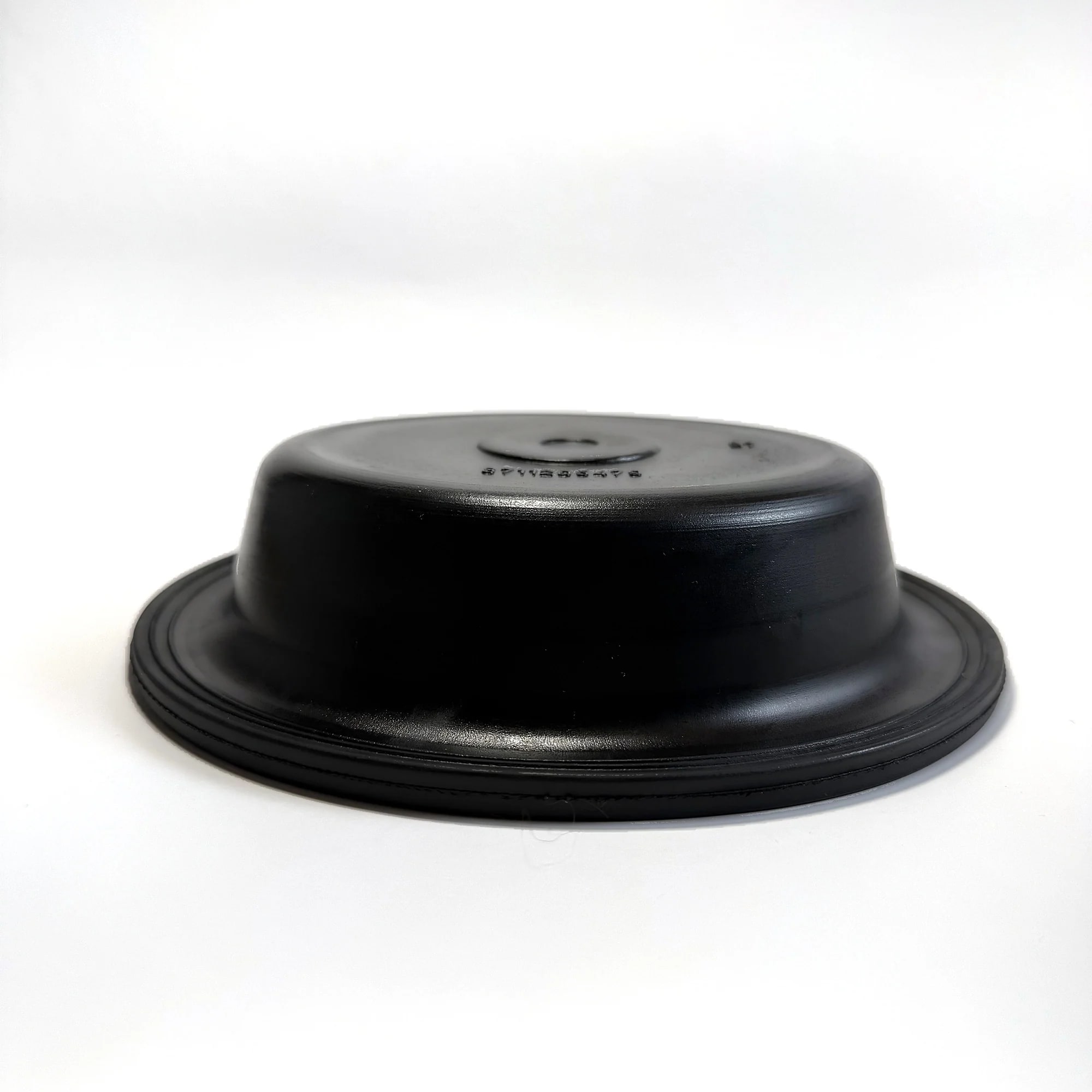

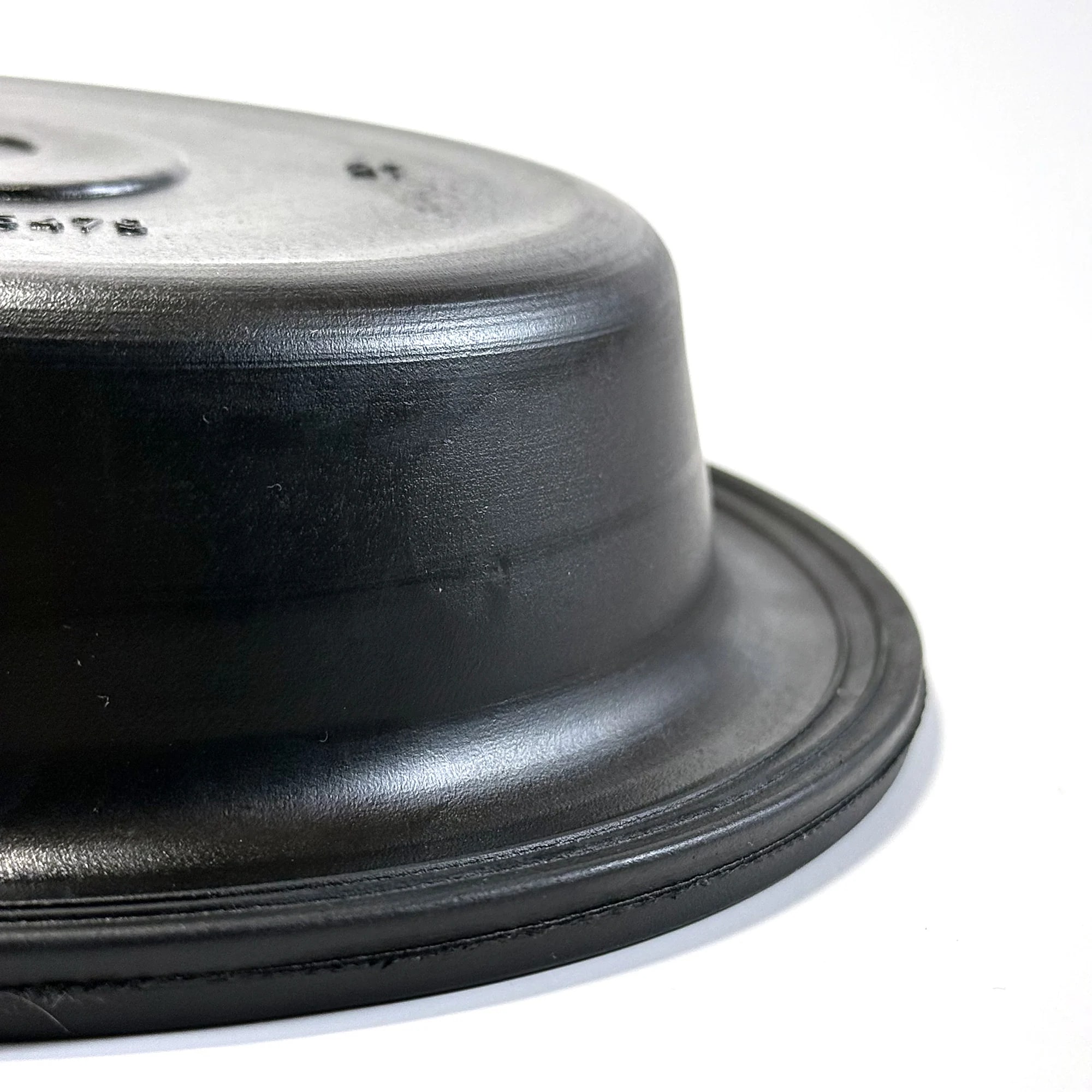

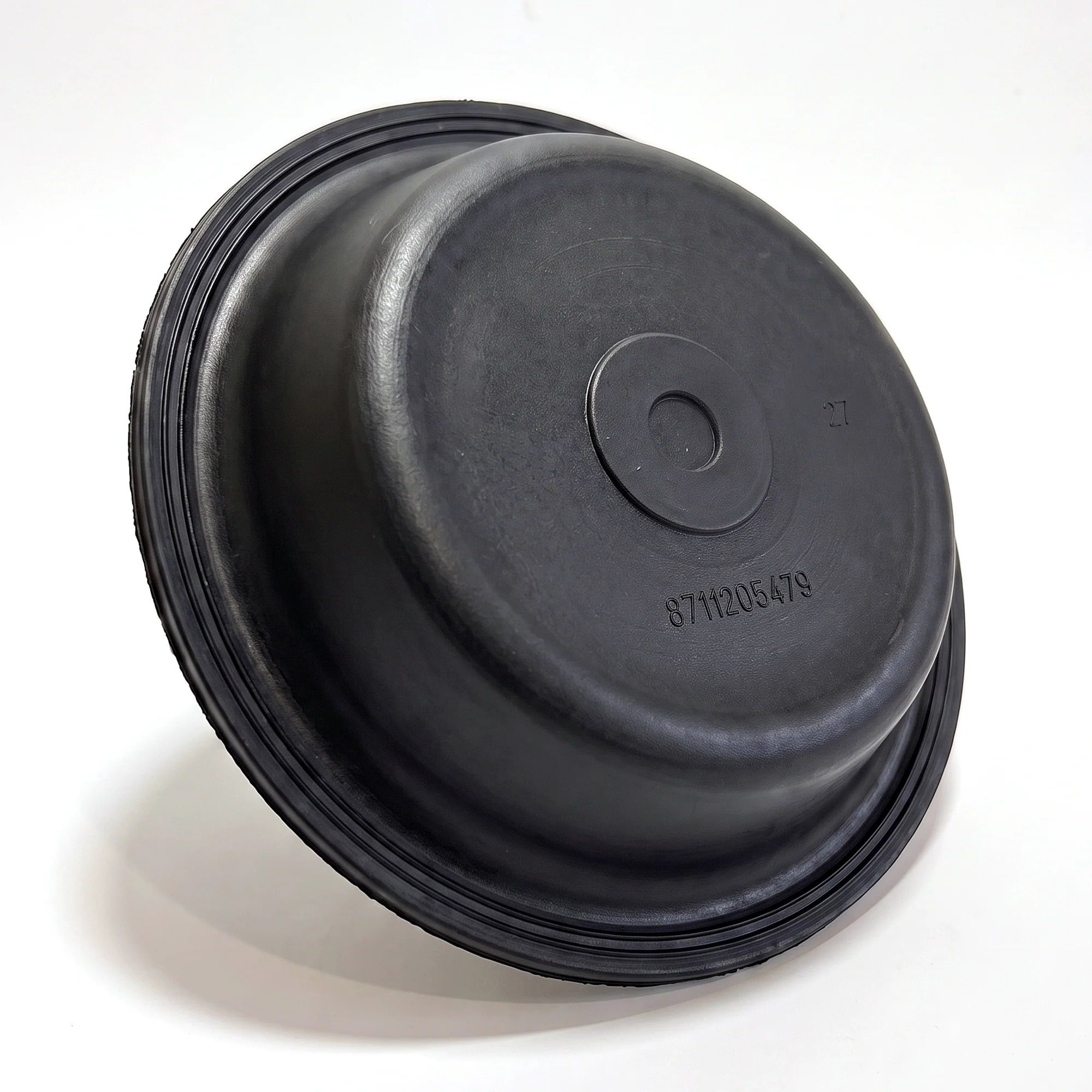

Type 27 Brake Chamber Diaphragm, Long Stroke
Viaforta VF-27LS is a Type 27 long stroke air brake chamber diaphragm, fabric-reinforced and manufactured in Türkiye. It cross-references 2 original equipment part numbers from Mercedes-Benz and WABCO. Free samples available; quotation within 24 hours.
Specifications
| Size | 27LS |
|---|---|
| Stroke type | Long Stroke |
| Material | Fabric-reinforced rubber compound, made in Türkiye |
| Fitment | Direct fit for Type 27 service brake chambers |
| Viaforta part no. | VF-27LS |
Dimensional data is not published. Manufacturing tolerances vary between production batches, and a fixed published figure that a shipment later disagrees with is worse than no figure at all. Fitment is confirmed by Type and stroke, and by the OEM number stamped on your chamber.
Order quantities and lead times are confirmed per order — request a quote.
Request a free sample
Up to 10 pieces, free of charge — you pay the shipping. Fit them and judge the part yourself.
Get a quote for VF-27LS
Send the part number and the quantity you need. You will get a price in USD, Incoterms and a lead time within 24 hours.
Free samples up to 10 pieces are available on request; you cover the shipping only.
Prices are quoted in USD, EXW or FOB Istanbul. Freight is arranged separately. Payment by bank transfer or letter of credit against a proforma invoice.
OEM cross reference
VF-27LS replaces the following original equipment part numbers. Each number links to its own reference page.
2 references across 2 manufacturers
| Brand | OEM number |
|---|---|
| Mercedes-Benz | 0004314228 |
| WABCO | 8971218464 |
Vehicle applications
This part cross-references original equipment numbers from the following manufacturers, across their heavy commercial vehicle ranges.
Mercedes-Benz
heavy commercial vehicles
Platforms: Actros · Arocs · Antos · Axor · Atego · Econic
WABCO manufacture air brake systems rather than vehicles — their numbers are catalogue references used across multiple vehicle makes.
Application data is indicative and derived from OEM cross-references. Confirm the Type marking and the OEM number stamped on your brake chamber before ordering. If you send us the number, we will confirm the match within 24 hours. Why this check matters
How does this part work?
The diaphragm sits between the two halves of the service brake chamber. When the driver applies the brake, compressed air fills the chamber on one side of the diaphragm; the diaphragm deflects and drives the push rod out, which rotates the slack adjuster and applies the foundation brake. Releasing the pedal vents the air and the return spring pushes the diaphragm back. A Type 27 diaphragm presents 27 square inches of effective area to that air pressure, which is what determines the output force of the chamber.
How air brake chamber diaphragms work →Why Viaforta?
Our own rubber formulation
The rubber mix is prepared at the production facility rather than bought in ready-made. Most competitors buy pre-mixed compound; controlling the mix is a real and checkable technical advantage.
Free samples, up to 10 pieces
Test before you commit. You pay only the shipping.
Every size from one source
Type 9 through Type 36, normal and long stroke, from a single supplier and a single set of documents.
Made in Türkiye
Manufactured at our production partner's facility in Istanbul, Türkiye.
Frequently asked questions
Which brake chambers does VF-27LS fit?
Can I use a normal stroke diaphragm in a long stroke chamber?
What material is used?
Do you publish dimensions?
What is the minimum order quantity?
Can I get a sample before ordering?
